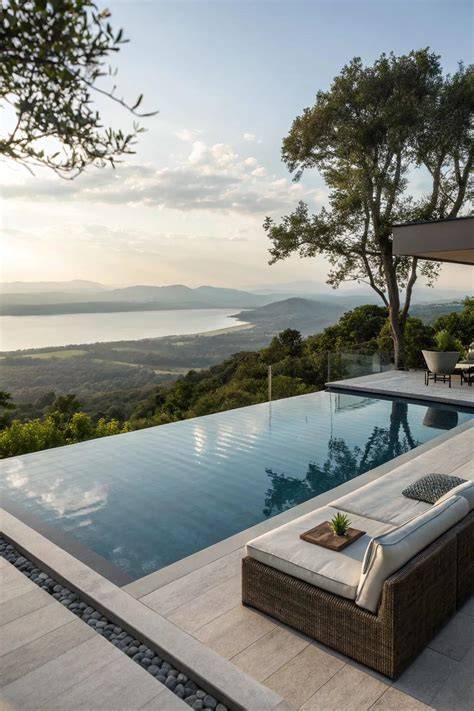

[Design Blueprint] Designing Infinity Edge Pools That Blend Into Nature
#Design #Blueprint #Designing #Infinity #Edge #Pools #That #Blend #Into #Nature[Design Blueprint] Designing Infinity Edge Pools That Blend Into Nature
[Trend Analysis] The Modular Outdoor Kitchen: Scalable Culinary Stations For Any Yard[Expert Advice] Amending Heavy Clay Soil For Healthy Plant Growth
The Illusion of Endless Water: A Masterclass in Designing Infinity Edge Pools That Meld with the Natural Landscape
There is a distinct, almost spiritual magic that happens when the edge of a swimming pool completely vanishes, leaving nothing but a glass-like sheet of water that seems to spill directly into the horizon. For decades, I have stood on dusty, sloping hillsides, blueprints clutched in my hands, trying to coax this exact optical illusion out of raw earth, steel, and concrete. It is a design feat that, when executed with absolute precision, feels entirely effortless—as if the water was always meant to rest right there, kissing the sky. But behind that quiet, serene surface lies a battlefield of rigorous mathematics, complex structural engineering, and deep hydraulic science.
If you have ever stood at the edge of a poorly designed infinity pool, you know the disappointment instantly. Perhaps you saw the ugly, exposed lip of the catch basin peeking out from the wrong angle, or maybe the water level was too low, breaking the spell of the continuous plane. Or worse, the pump screamed like a jet engine, shattering the quiet majesty of a mountain sunset. A true zero-edge or vanishing-edge pool should be a silent partner to the landscape, matching its moods, reflecting its colors, and respecting its natural contours. It is not about forcing a massive concrete structure onto nature; it is about carving a vessel that allows nature to speak.
To achieve this level of integration, we have to look far beyond the pool shell itself. We must become students of the land, understanding how the sun moves across the sky, how the wind ripples the water surface, and how the geological bones of the site dictate what we can and cannot build. This is not a project for the faint of heart, nor is it a cookie-cutter backyard build that you can sketch on the back of a napkin over lunch. It requires an obsessive attention to detail, from the exact millimeter of the weir wall level to the chemical composition of the plaster finish.
In this comprehensive guide, we are going to walk through the entire design blueprint of the high-end infinity pool. We will explore the delicate interplay of physics and philosophy that makes the illusion work, dive deep into the structural realities of building on precarious slopes, unpack the complex hydraulics that keep the water flowing silently, and select the materials that will make your creation look like a natural geological formation. Whether you are an architect looking to refine your technical edge, a builder facing a challenging hillside site, or an ambitious homeowner dreaming of a backyard sanctuary, consider this your masterclass.
Understanding the Optical Illusion: The Physics and Philosophy of the Vanishing Edge
The human eye is remarkably easy to trick, but it is also incredibly sensitive to inconsistencies. The entire concept of the vanishing edge relies on a simple trick of perspective: we are aligning two completely different horizontal planes so that they appear to merge. The first plane is the water level of your pool, which is typically only a few feet or yards away from the viewer. The second plane is a distant feature—be it the ocean, a lake, a mountain range, or even a dense canopy of trees. When designed correctly, the physical boundary of the pool disappears, and the mind seamlessly bridges the gap between the near water and the far horizon.
To make this illusion work, the water must flow over a lowered back wall, known as the weir wall, which is sloped away from the viewing area. If the weir wall is perfectly level—and I mean down to the sixteenth of an inch—the water will spill over it in a uniform, unbroken sheet. This uniform spillway is what hides the physical structure of the wall. If there is even a minor dip or high point in that concrete edge, the water will channel through the low spots, leaving the high spots dry and exposing the concrete or tile. The moment the dry wall is exposed, the illusion is broken, and the pool instantly looks like an artificial tank rather than an endless body of water.
I remember a project I consulted on in Malibu where the builder had rushed the leveling of the weir wall, assuming a self-leveling mortar would fix any discrepancies later. It didn't. When we filled the pool, a three-foot section of the edge remained dry because of a subtle three-millimeter sag in the center. From the master bedroom window, the pool didn't look like it merged with the Pacific Ocean; it looked like a leaking bathtub. We had to drain the entire 40,000-gallon pool, grind down the high spots, rebuild the tile line, and hand-polish the edge. It was a brutal, expensive lesson in why precision is non-negotiable from day one.
Philosophically, a vanishing edge pool should act as a mirror. It is not just about the water falling away; it is about what the water reflects. On a clear day, a dark-bottomed infinity pool reflects the sky so perfectly that you cannot tell where the water ends and the clouds begin. At night, it becomes a canvas for the stars. To achieve this, the pool must be positioned so that the primary viewing angles—whether from the main living room, the outdoor patio, or the master suite—align perfectly with the vanishing edge and the background. You are not just building a pool; you are composing a living painting.
+--------------------------------------------------------+
| PRO-TIP |
| Never design an infinity edge facing west if you have |
| a flat horizon without checking wind patterns. Strong |
| afternoon winds can push water away from the weir, |
| dry out the edge, and ruin the optical illusion |
| right when your clients are sitting down for sunset |
| cocktails. Always orient the edge to work with, not |
| against, prevailing local wind currents. |
+--------------------------------------------------------+
Site Analysis: Reading the Topography and the Horizon
Before you ever touch a shovel or open a CAD program, you must spend hours on the site. I like to visit a property at different times of the day—early morning, high noon, and twilight—to see how the light falls across the land. The topography of the site will dictate not only the feasibility of an infinity pool but also its entire design language. While it is technically possible to build an infinity pool on a flat lot (often called a "zero-edge" or "perimeter-overflow" pool where the water spills on all four sides), the classic vanishing edge truly shines on sloping terrain.
A sloping site provides the natural drop-off required to hide the catch basin. The catch basin, or surge tank, is the lower trough that catches the water as it spills over the weir wall and recirculates it back into the main pool. If the ground slopes away from the house, you can position the catch basin completely out of sight from the primary viewing areas. This creates the dramatic effect of the water falling off a cliff into the great unknown. However, a steep slope also means you are dealing with significant structural challenges, soil instability, and complex retaining systems.
During your site analysis, you must also map the sun's path throughout the year. An infinity pool relies on reflection, and reflection relies on light. If the pool is cast in the shadow of the house or large trees for most of the afternoon, the water will look dull and flat rather than sparkling and vibrant. Conversely, if the sun hits the pool at a direct, blinding angle during prime swimming hours, it can create uncomfortable glare. You want to angle the pool so that the sun strikes the water at an oblique angle from behind or beside the viewer, maximizing the depth of color and the quality of the reflections.
Crucial Elements of a Pre-Design Site Survey
- Geotechnical Soil Testing: Deep core drilling to identify rock layers, clay expansion, and water tables.
- Microclimate Wind Analysis: Determining prevailing wind directions to prevent excessive evaporation and dry weir spots.
- Solar Path Mapping: Tracking seasonal sun angles to optimize natural heating and reduce glare.
- Sightline Verification: Using physical story poles or 3D drone modeling to confirm the horizon alignment from key indoor and outdoor viewing locations.
- Vegetation and Leaf-Drop Assessment: Identifying nearby native trees that will drop debris directly into the catch basin.
The Critical Role of Slope and Structural Engineering
When you build an infinity pool on a hillside, you are essentially building a high-performance retaining wall that also happens to hold tens of thousands of gallons of shifting water. The structural engineering of these pools is incredibly intense. You cannot simply dig a hole in a slope, spray some shotcrete, and call it a day. The weight of the water, combined with the lateral pressure of the moving earth behind the pool, creates massive structural forces that want to push the pool down the hill.
To counteract these forces, structural engineers typically design a system of deep concrete caissons or piles that are anchored directly into the bedrock far beneath the unstable surface soil. These caissons act as massive concrete legs that support the pool shell. A heavy-duty grade beam is then poured across the top of the caissons, and the pool floor and walls are tied directly into this substructure with thick webs of structural steel rebar. In some cases, we also utilize tiebacks—steel cables anchored deep into the hillside behind the pool—to pull the structure back and prevent any downslope movement.
+--------------------------------------------------------+
| INSIDER NOTE |
| In seismic zones like California or the Mediterranean, |
| the structural engineering must account for "sloshing" |
| loads. During an earthquake, the water in the pool |
| acts as a giant pendulum, transferring immense dynamic |
| energy to the pool walls. Skimping on steel rebar |
| thickness here is a recipe for catastrophic failure. |
+--------------------------------------------------------+
I remember standing in a 15-foot-deep excavation on a cliffside in Pacific Palisades, looking at a forest of steel rebar that looked more like the foundations of a skyscraper than a backyard pool. The structural engineer had specified double curtains of #6 rebar spaced at six inches on center, with a shotcrete thickness of twelve inches for the pool walls. It felt like overkill at the time, but three years later, a minor mudslide washed away a portion of the hillside directly beneath the pool. Because of those deep caissons, the pool remained perfectly suspended in mid-air, completely undamaged, while the earth slid away beneath it. That is the power of proper engineering.
Another critical factor is the hydrostatic pressure of the groundwater. When you dig into a slope, you often intercept natural water paths flowing down the hill. If you don't provide a way for this groundwater to escape, it will build up behind the pool shell, creating immense pressure that can actually lift the entire pool out of the ground (a phenomenon known as pool popping) or crack the concrete. We always install a comprehensive sub-drainage system—often consisting of gravel beds, perforated weep pipes, and hydrostatic relief valves—beneath and behind the pool shell to safely divert groundwater away from the structure.
Mapping the Sightlines: Aligning the Waterline with the Horizon
The magic of the infinity edge is entirely dependent on geometry. If the height of the weir wall is off by even a fraction of an inch relative to the viewer's eye level, the illusion collapses. To map these sightlines accurately, you must first establish the "primary viewing point." This is the location where people will spend the most time looking at the pool—perhaps sitting at the outdoor dining table, lounging on the main patio, or standing at the kitchen island looking through a large sliding glass door.
Once you have established this point, you draw a straight line from the viewer’s eye level, over the top of the pool's weir wall, to the distant horizon feature (such as the ocean shoreline or a mountain ridge). The top of the weir wall must sit exactly on this line. If the weir wall is too high, it will block the view of the distant landscape, creating a visual barrier. If the weir wall is too low, the viewer will be able to see down into the catch basin, exposing the plumbing, the collection trough, and the dirty water surface below.
Viewer's Eye Level (Deck/Interior)
\
\ Pool Water Surface
\=======================* <-- Weir Edge (Must align perfectly)
| \
| \ Water Spillway
| \
| *-----------------+
| | Catch Basin |
| +-----------------+
\
\---> Distant Horizon (Ocean/Mountain)
This alignment becomes even more complicated when you realize that people's eye levels change. A person standing up has an eye level of roughly five to six feet, while someone sitting in a low lounge chair has an eye level of about three to four feet. A truly great designer will compromise, placing the weir wall at a height that maintains the illusion for both seated and standing viewers, or they will design the pool deck with stepped levels to naturally guide people into the perfect viewing heights. We often use physical mockups—using wood frames and string lines on site—to physically verify these sightlines before a single drop of concrete is poured.
You must also consider the width of the vanishing edge. It should span the entire field of view from the primary viewing area. If you have a wide, sweeping view of the ocean, but your infinity edge is only fifteen feet wide, the pool will feel like a small window rather than an endless expanse. The edge should extend far enough to the left and right that the physical ends of the pool are out of the viewer's peripheral vision when they are looking toward the horizon. This expands the sense of space and makes the backyard feel like it occupies the entire landscape.
Hydraulic Engineering: The Unseen Heart of the Infinity Pool
While the structural steel and the beautiful tile get all the glory, the real workhorse of an infinity pool is the hydraulic system. An infinity pool is not a static body of water; it is a dynamic, continuously recirculating system. Water is constantly being pumped from the main pool, spilling over the weir wall, falling into the catch basin, flowing into a surge tank, and being pumped back up into the main pool. If this system is not engineered with absolute precision, you will run into a host of problems: noisy pumps, inadequate water flow, excessive energy bills, and pools that overflow or run dry.
To design a successful hydraulic system, you have to understand that you are running two distinct plumbing loops. The first loop is the standard filtration and heating system, which keeps the pool clean and warm. The second loop is the infinity edge system, which is dedicated solely to pumping water from the catch basin back up to the main pool to maintain the spillway. These two systems must be completely independent of one another. If you try to run both loops off a single pump, you will never be able to balance the flow rates correctly, and you will end up burning out your equipment.
The flow rate over the weir wall is the critical metric here. To maintain a clean, continuous sheet of water over the edge, you need a specific volume of water flowing over every linear foot of the weir. Generally, we design for a minimum flow rate of 2 to 3 gallons per minute (GPM) per linear foot of edge. If you have a 40-foot vanishing edge, that means you need a pump capable of delivering 80 to 120 GPM of continuous flow just to keep the edge wet. If the client wants a dramatic "waterfall" effect down the back wall, you may need to increase that flow rate to 5 or even 10 GPM per linear foot, which dramatically increases pump size and energy consumption.
+--------------------------------------------------------+
| PRO-TIP |
| Always design a dual-speed or variable-frequency drive |
| (VFD) pump for the infinity edge loop. This allows the |
| homeowner to dial down the flow rate to a whisper-quiet|
| "trickle" for intimate evening gatherings, or crank it |
| up to a dramatic "gush" when hosting large pool parties|
| where bather surge is high. |
+--------------------------------------------------------+
Sizing the Surge Tank and Catch Basin Correctly
The single most common mistake made by inexperienced pool builders is undersizing the catch basin or surge tank. When the pool pumps are turned off, the water stops flowing over the weir wall, and the water level in the main pool drops down to the exact height of the concrete edge. All that "transitional water"—the water that was active in the spillway, plus the water that is displaced when swimmers jump into the pool (known as bather surge)—must have a place to go. If your catch basin is too small, this water will overflow the basin walls and spill down the hillside, washing away landscaping and wasting expensive treated water.
Conversely, when you turn the pumps back on, the system must draw water from the catch basin to prime the lines and establish the sheet of water over the weir. If the catch basin does not hold enough water, the pump will draw the basin dry before the water has time to flow over the edge and return to the basin. This will cause the pump to suck in air, lose prime, and run dry, which can destroy the pump motor in a matter of minutes. Therefore, the catch basin must be sized to hold both the transitional water volume and the bather surge volume safely.
To calculate the minimum volume of your catch basin or surge tank, you must use a precise mathematical formula:
$$\text{Total Basin Volume} = \text{Transitional Water Volume} + \text{Bather Surge Volume} + \text{Operating Reserve}$$
Let's break down these components with an illustrative calculation.
+----------------------------------------------------------------------------------+
| CATCH BASIN CALCULATION |
| |
| 1. Transitional Water Volume: |
| - Weir Length: 40 feet |
| - Water Depth over Weir: 0.5 inches (0.0417 feet) |
| - Surface Area of Main Pool: 800 sq ft |
| - Volume required to raise pool level by 0.5 inches: |
| 800 sq ft * 0.0417 feet = 33.36 cubic feet (~250 gallons) |
| |
| 2. Bather Surge Volume: |
| - Estimated maximum of 10 swimmers simultaneously |
| - Average displacement per swimmer: 2.5 cubic feet (18.7 gallons) |
| - Total Bather Displacement: 10 * 18.7 = 187 gallons |
| |
| 3. Operating Reserve (Water needed to fill plumbing lines and prevent vortexing): |
| - Estimated plumbing/vortex reserve: 150 gallons |
| |
| MINIMUM REQUIRED BASIN CAPACITY: 250 + 187 + 150 = 587 gallons |
+----------------------------------------------------------------------------------+
If you design a simple, narrow trough that only holds 200 gallons, your pool will fail operationally on day one. I always recommend building a safety factor of at least 1.5 to 2 times the calculated minimum volume. In the example above, I would design a catch basin or dedicated surge tank with a capacity of at least 1,000 to 1,200 gallons. This gives you a comfortable buffer for high winds (which cause rapid evaporation), heavy bather loads, and unexpected power outages.
Flow Rates, Pump Selection, and Whisper-Quiet Operation
Once you have calculated your required flow rate and basin volume, you must select the right pumps and design the plumbing layout. For high-end residential projects, noise is a major design constraint. No one wants to sit on a beautiful, multi-million-dollar terrace listening to the high-pitched whine of a 3-horsepower pump struggling to push water up a hill. To achieve whisper-quiet operation, we must design the hydraulics with low dynamic head loss and slow water velocities.
This means using oversized plumbing lines. While a standard pool builder might use 2-inch or 2.5-inch PVC pipes for a pool return, an infinity edge loop often requires 3-inch, 4-inch, or even larger suction and return lines. By increasing the pipe diameter, you reduce the friction of the water rubbing against the inside of the pipe. This allows you to move a massive volume of water at a much lower velocity and pressure, which means the pump doesn't have to work nearly as hard. Lower pressure equals less vibration, and less vibration equals a quieter system.
Checklist for Achieving Whisper-Quiet Pool Hydraulics
- [ ] Oversize the Plumbing: Use a minimum of 3-inch PVC on suction lines and 2.5-inch on return lines to reduce water velocity below 5 feet per second.
- [ ] Install Variable Frequency Drive (VFD) Pumps: Run pumps at lower RPMs (e.g., 1800 RPM instead of 3450 RPM) to cut noise levels by up to 75%.
- [ ] Vibration Isolation Pads: Place heavy-duty neoprene or rubber isolation pads beneath all pump bases to prevent sound transmission through the concrete equipment pad.
- [ ] Sweep Elbows Only: Never use hard 90-degree plumbing elbows; instead, use sweep elbows or two 45-degree fittings to minimize hydraulic turbulence.
- [ ] Acoustic Equipment Enclosure: House the pool equipment in a ventilated, sound-dampening masonry enclosure located away from primary outdoor living spaces.
We also pay close attention to where the water returns to the main pool. If you pump the water back into the pool through standard wall jets, you will create visible ripples and turbulence on the pool surface. This turbulence will disrupt the mirror-like reflection that we worked so hard to create. Instead, we use floor returns—often called "upflow" inlets—that gently distribute the water across the bottom of the pool. The water rises slowly and evenly to the surface, maintaining a perfectly glassy, undisturbed top layer.
